               Peltier coolers need quite high current at low
              volts.  The one I used can be driven up to 2V which will draw
              2A.
              Power supplies are complex things of which I have
              little understanding!  The way I am driving the Pelt is by
              using a LM317T variable regulator supplied from the 5V output of
              an old PC power supply.  The circuit looks like

                   |


              |

                   |



              |
                 I used 1K for r1 and variable 1K for r2.
                An additional 400 ohms from output to earth allows the voltage
                to be adjusted without the Pelt attached.

             |


              |



              |


              |

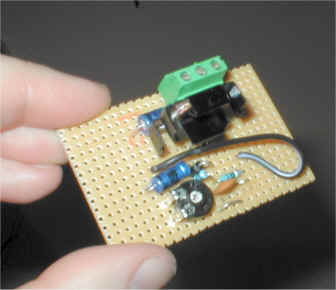

                 Its quite compact.  Sadly the heatsink
                shown was not up to the job and a larger one was needed.  |



               |




         |

                                 |



                         |



                                |





      |
